Radium in dry stream sediments
-
Radium can be determined in sediments in dry stream beds, and anomalous values point
to uranium exploration targets upstream.
-
- Place about 40 grams of sediment in an 8-ounce jar.
- Fill the jar with radon-free water.
- Let it sit a week or two for the radon to grow in.
- Stir it up, decant the water into the degassing system and count the radon in the normal way.
- Grain size of the sediment is not too important. You can use much coarser than 80 mesh. You
don't need to grind the sediment, or use any chemical attack.
-
You can set up the radon/radium lab in the field. It is battery operated.
But you have to wait for the radon to grow in.

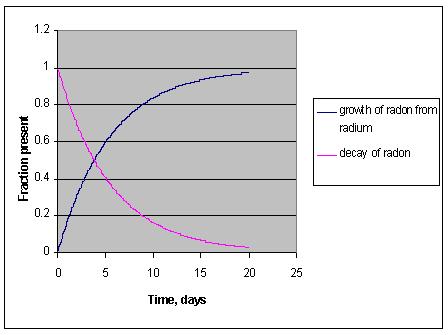

See the growth curve.
-
Radium is less soluble than uranium, and it would not be surprising to find that these dry
sediments have been leached of much of their uranium, leaving behind a detectable radium
anomaly.
-
Most of the gamma radiation used in uranium exploration comes from radium daughters,
particularly bismuth-214. However, the radium anomalies we found can only be found with our
geochemical technique: the gamma radiation is not sufficient to be detected by gamma-ray
scintillometer or spectrometer.
-
We found radium anomalies in dry sediments downstrem from uranium deposits at Mount
Painter, Radium Hill, and Mary Kathleen.
|
INSTRUMENTS
-
We measure: radon - radium - thoron - radon daughters - alpha radiation.
-
The
Lucas cell
is recognized as the most sensitive and reliable method for these elements.
-
Our instruments are used around the world in exploration for uranium, oil & gas, groundwater and hydrothermal,
and in environmental protection, health physics, earthquake prediction, and evaluation of hydrocarbon and NAPL contamination.
-
In the radon business since 1968, our latest major instrument update was 2015.
-
Modern, low-power, field-rugged electronics. Some earlier versions still working after 35 years.
-
Continuous real-time monitoring and data recording.
-
Winter and summer, from the Sahara Desert to the Canadian Shield, our instruments have faced up to severe field conditions.
- Intrinsically safe functions.
-
Sensitive to geochemical trace levels necessary for radon in lake water and for radon-thoron isotope ratios.
-
Can work in a tent without electricity or be carried from point to point in the field.
-
50 readings per day. Results available immediately.
-
Rechargeable battery pack good for a long day in the field and recharges in a few hours.
-
Can be operated by junior personnel if carefully supervised.
-
Same instruments used for radon and radium in soil, sediment,
plant parts, rocks, water, soil gas, air, and snow, and for radon daughters in air.
- EPA compliant.
-
Click here for more details of instruments.
-
Click here for or other instruments, components and
accessories we provide
-
Technical specification sheets and pictures of our instruments provided on request.
-
Multilingual consulting and training (if required).
